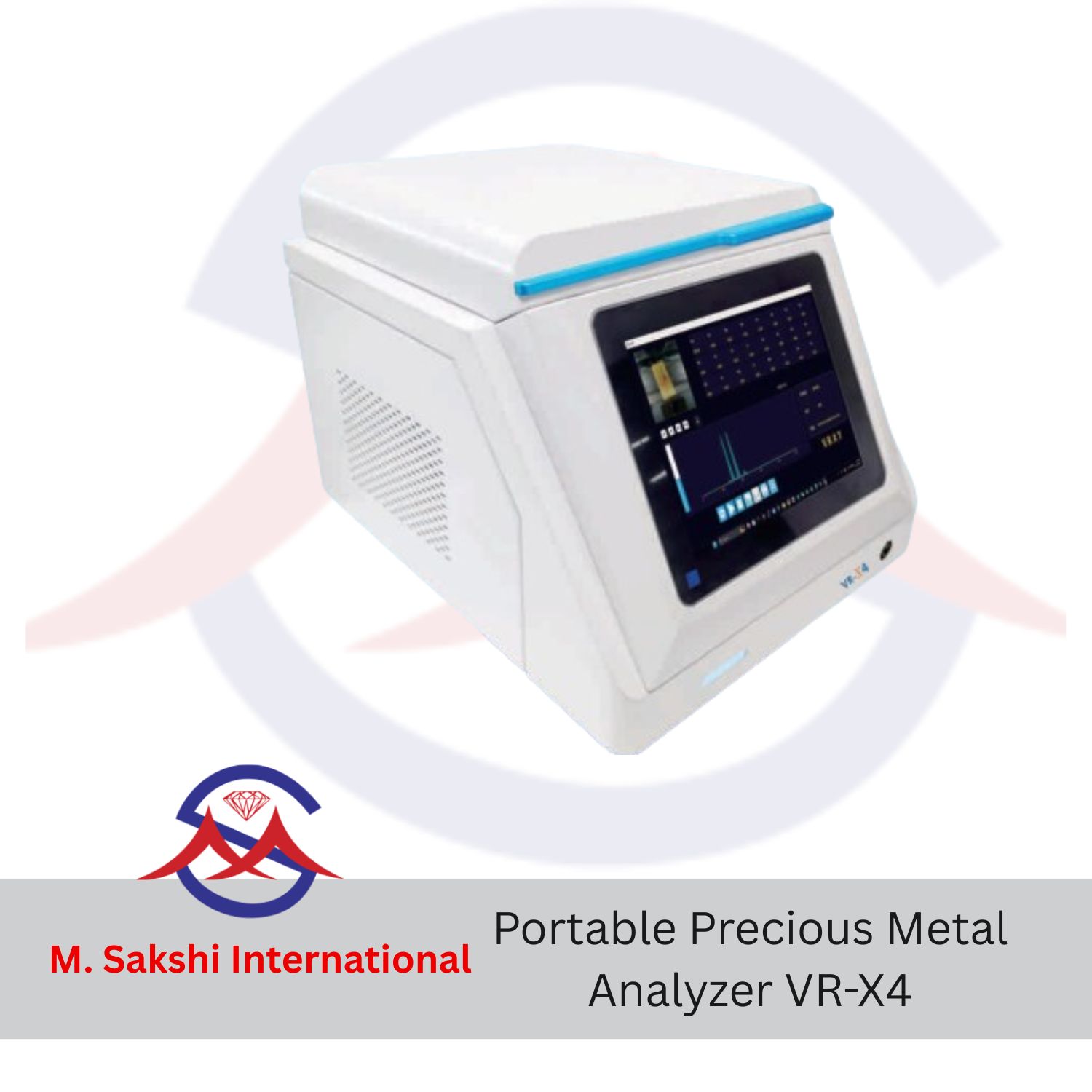

Portable Precious Metal Analyzer VR-X4

Input Voltage: AC 110–240V ±5%, 50/60Hz
Package Size: 530 × 400 × 430 mm
Machine Size: 330 × 455 × 330 mm
Sample Chamber Size: 300 × 200 × 120 mm
Rated Power: < 150 W
Net / Gross Weight: 23 kg / 33 kg
Detector: Gas Proportional Detector
Built-in Industrial Computer: Intel Sandy Bridge highly integrated industrial motherboard
HV Power Supply: 0–50 kV / 0–1 mA
X-ray Tube: 50 kV / 1 mA
Collimator: Φ 2.5 mm
Noise Level: ≤ 50 dB
Operating Temperature: 0 ℃ – 28 ℃
Operating Humidity: < 70% (non-condensing)

Share This Items :

Description

Portable XRF precious metal analyzer for fast, non-destructive testing.
Analysis elements: Au, Ag, Pt, Pd, Re, Cd, Cu, Ni, Zn, Rh, Ru.
High precision: up to 0.1% accuracy for 999 gold analysis.
Test samples: solid materials such as jewelry, coins, bars, and metal parts.
Program-controlled analysis system to ensure stable and repeatable results.
Reduced interference from reflected X-rays and overlapping spectrums.
Enhanced accuracy and stability through advanced software algorithms.
Rapid testing speed, delivering results within seconds.
User-friendly interface for simple operation and clear data display.
Compact and portable design, suitable for on-site and laboratory use.
