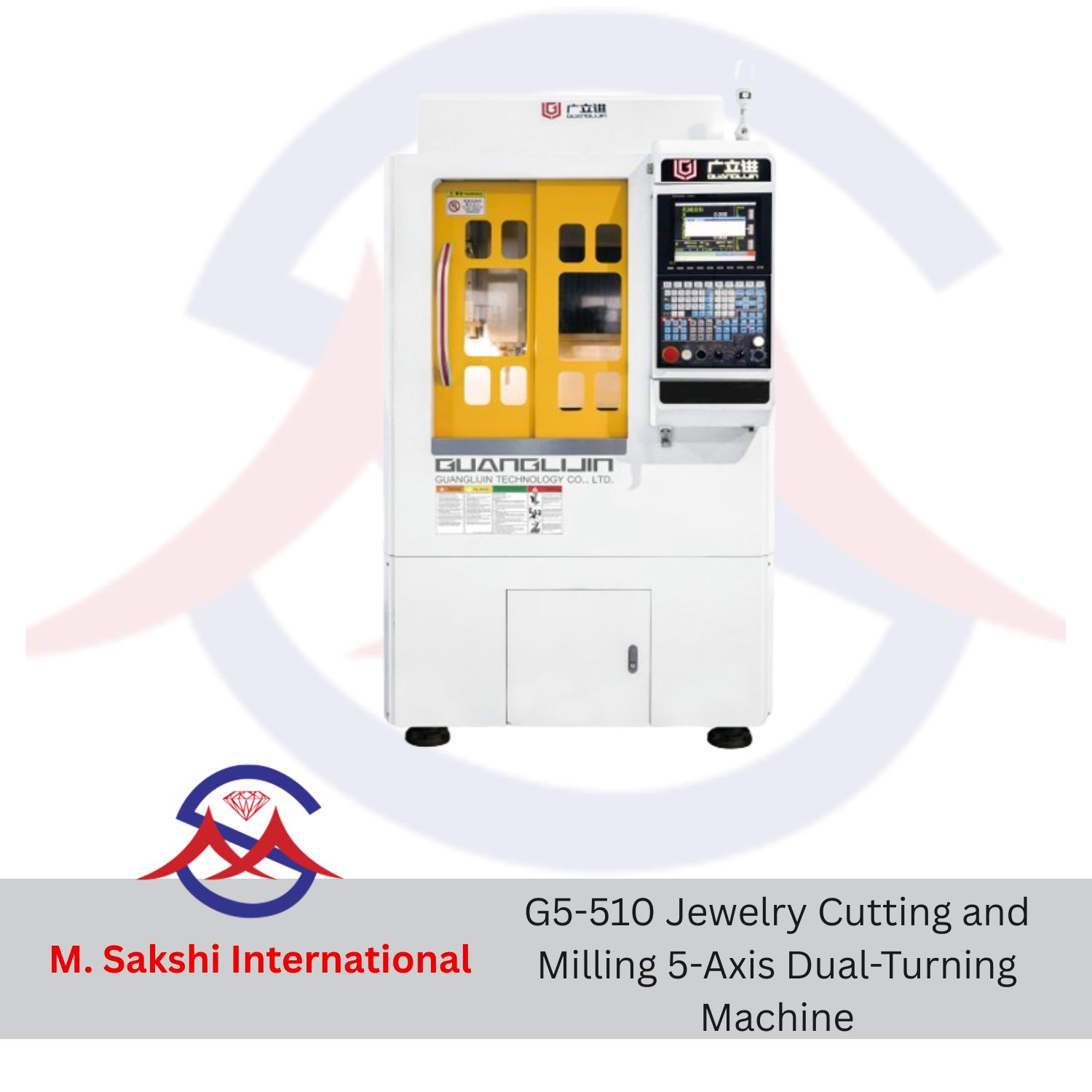

Axes & Drive

• B-axis reducer: Alpha (Germany)

  • Rated torque: 167.3 Nm

  • Instant max torque: 585.2 Nm

  • Rated speed: 43 rpm, max 85 rpm

• C-axis motor: Direct Drive Motor

  • Speed: 2500 rpm

  • Rated torque: 15 Nm

• D-axis motor: Direct Drive Motor

  • Speed: 2500 rpm

  • Rated torque: 10 Nm

• Transmission components: Rexroth (Germany)

• Repeatability: ±0.005 mm

Control & Operation

• System: SYNTEC

• Operation box: 220MB-5, 10-inch screen

Motors & Spindle

• Servo motor: Japan, 750 W

• Spindle: Electric

  • Power: 8.0 kW

  • Speed: up to 40,000 rpm

  • Cooling: Water-cooled with flow alarm

Tool System

• Tool magazine: Servo-driven

  • Up to 18 engraving tools + 4 turning tools

• Tool calibration: Auto setting

  • Speed: 50–200 mm/min

  • Accuracy: 0.002 mm

• Tool holder: HSK E32

• Chuck: ER20

• Tool clamping range: Ø1–Ø12 mm

Accuracy

• Repeat positioning accuracy: ±0.005 mm

• XYZ axis reciprocating accuracy: ±0.005 / 300 mm

• Working flatness: ±0.005 mm

Travel & Size

• X × X × Y × Z stroke: 500 × 65 × 150 × 210 mm

• Boundary dimensions: 1500 × 1200 × 2100 mm
  (with oil mist collector: 2400 mm height)

• Body weight: 2.0 tons

Power

• Configuration: 380 V / 50 Hz
