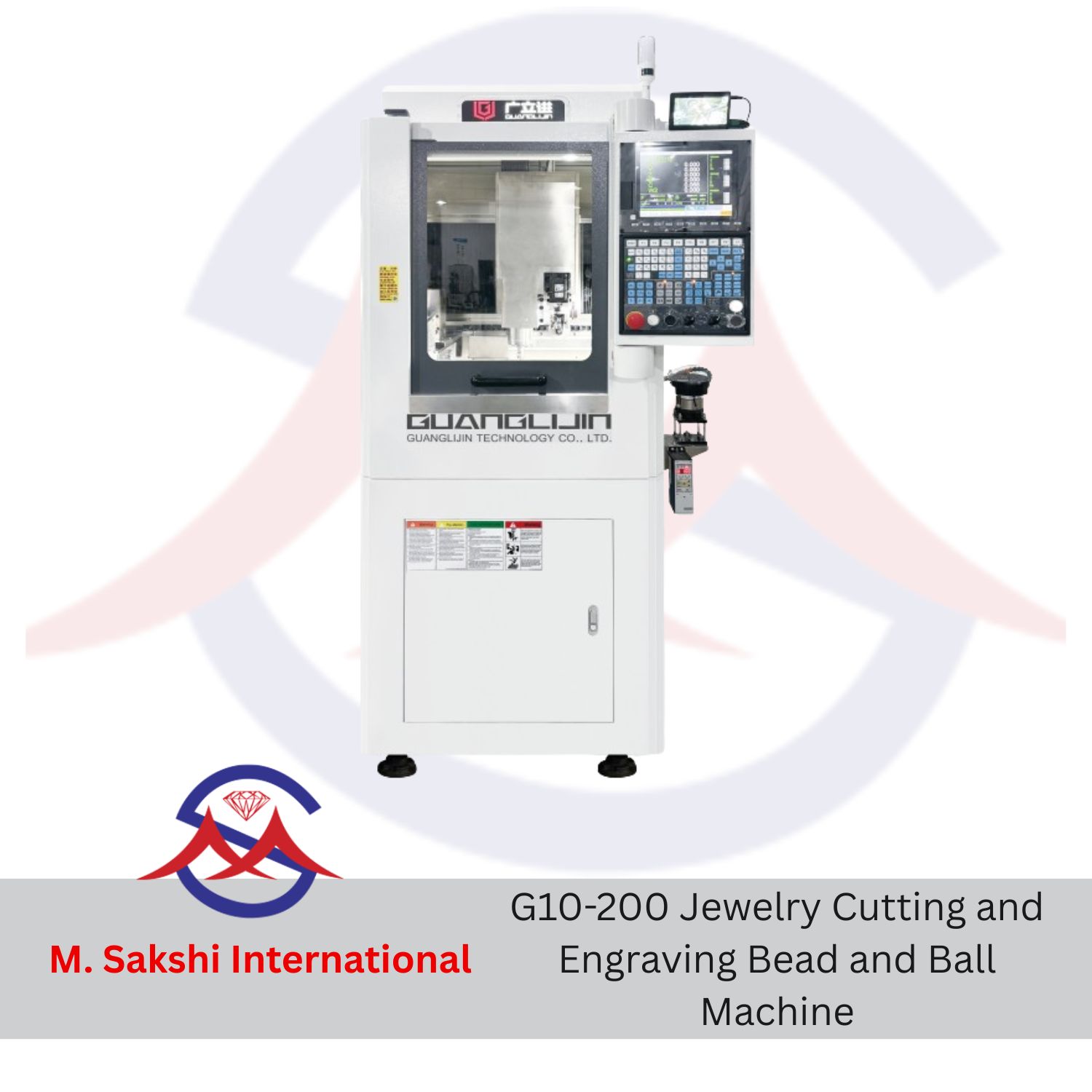

G10-200 Jewelry Cutting and Engraving Bead and Ball Machine

A-axis reducer (Servo motor)
- Rated torque: 0.28N.m
- Instantaneous max. torque: 1N.m
- Rated speed: 250 rpm (Max: 500 rpm)
10-axis reducer (Servo motor)
- Rated torque: 0.16N.m
- Instantaneous max. torque: 0.56N.m
- Rated speed: 250 rpm (Max: 500 rpm)
B-axis (Taiwan Splitter)
- Rated torque: 28.8N.m
- Instantaneous max. torque: 85.2N.m
- Rated speed: 250 rpm (Max: 500 rpm)
Transmission components (Rexroth, Germany)
- Repeatability: ±0.003mm
Spindle (Electric)
- Power: 3.7kw
- Max. speed: 45000 rpm
- Cooling: Water cooling with flow-alarm
- Tool holder specification: HSK E25
- Chuck specification: ER 16
- Tool clamping range: $\Phi$ 1mm– $\Phi$ 10mm
W-axis motor (Servo motor)
- Max speed: 10000rpm
- Round cutter diameter: 70mm
Operation & Control
- System: SYNTEC system
- Interface: 220MB-10.4 inch screen operation box
- Servo motor power: 100W / 400W / 750W
Physical & Accuracy Specs
- XYZ stroke: 185 * 75 * 120
- Repeat positioning accuracy: ±0.005mm
- Working flatness: ±0.015mm
- Boundary Dimensions: 1050 * 1200 * 2000 (With oil mist collector: 2450)
- Body weight: 1 ton
- Power configuration: 380v/50hz
- Lubrication: Timing automatic oiling (Servo-drive)

Share This Items :

Description

CNC jewelry bead and ball cutting & engraving machine designed for precision ornament detailing
Purpose-built for bead shaping, ball finishing, and surface engraving on small jewelry parts
Rigid machine construction for stable cutting and consistent accuracy
High-speed precision spindle optimized for fine cutting, surface texturing, and engraving
Precision linear guideways and ball screws for smooth axis movement and high positional accuracy
Advanced CNC control system supporting engraving paths, tool compensation, and repeatable machining
Capable of machining gold, silver, platinum, brass, copper, aluminum, wax, and other jewelry materials
High repeatability and positioning accuracy for fine detail work and close-tolerance components
Efficient chip removal and optional cooling/lubrication system for continuous stable operation
Ideal for bead shaping, engraving designs, surface finishing, and small-batch jewelry production
